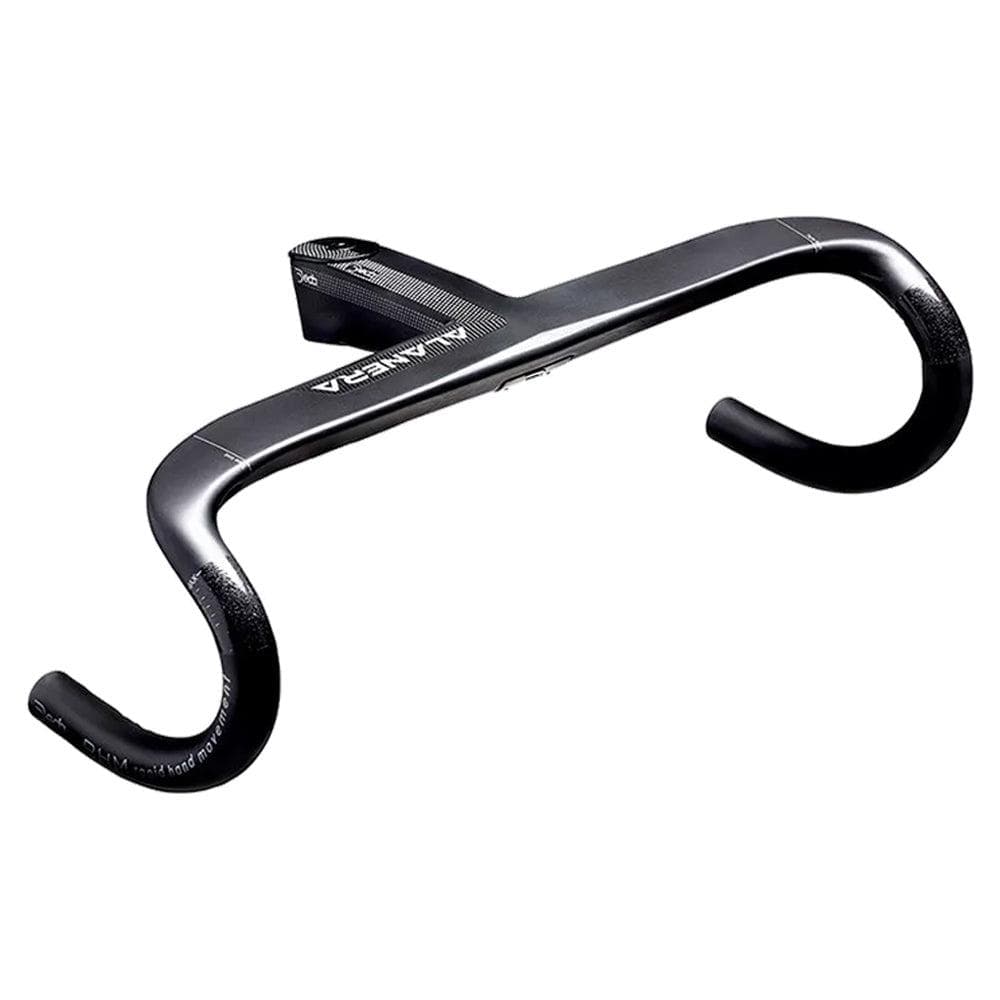

Deda Elementi Alanera DCR PoB 130x46

The Alanera's DCR (Deda Internal Cable Routing) system allows full internal routing of the cables inside the handlebar when mounted on D-shaped forks. .

Developed to be aero, the optimized design of the integrated bar and stem guarantees a perfectly integrated look with the bike.
The RHM shape guarantees a very compact reach and drops for a fast change of position from the shifters to the drops.
Specific aero spacers with an innovative mounting system complete the design of the handlebar, the result is a bar that is more integrated with the frame.
A special aero top cap and a Garmin bike mount complete the supplied accessories.
There is an Easy Fixing system for Di2 and EPS unit under the stem.

The Alanera is available in 14 different size combinations.

* Sizes: 90x40, 90x42, 100x40, 100x42, 100x44, 110x40, 110x42, 110x44, 120x42, 120x44, 120x46, 130x42, 130x44, 130x46.
* Notes about sizes: Stem Length (mm) x handlebar width (cm) measured outside to outside
* Shape: RHM (Rapid Hand Movement)
* Material: UD full carbon construction
* Fork Steerer: 1 1/8" - Tapered (28.6mm)
* Angle: 82deg
* Depth: 75mm
* Drop: 130mm
* Handlebar Weight: 350g (110x42)

**Included with:**

* Aero top cap
* Headset spacers and top cover for headtube 46mm and 56mm
* Garmin bike mount for 500 and 800 series
* Wahoo and GoPro mounts available to order

**Note:**

Compatible with full internal cable routing (2 brake cables and electric shifting wire) and external cable routing.
